The color codings are not an official part of the definition of the fsm. What is important to understand is that the interfaces between the interfaces are well defined so that it is theoretically possible to replace a particular protocol with another one that operates at that level. Tcpip model has a highly scalable client server architecture.

Rack And Pinion Diagram With Images Garden Tools Rack

What Are The Best Resources To Learn About Linux Kernel Internals

Iso Osi Layer Model Tcp Ip Model Osi Model Osi Layer

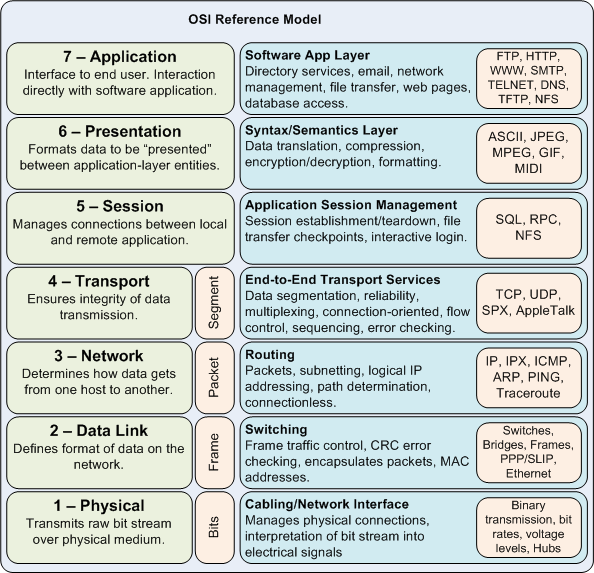

The diagram shows how the tcpip and osi models compare.

Tcp ip stack diagram. Supports a number of routing protocols. This is shown in figure 20. For example you should theoretically be able. Communications between computers on a network is done through protocol suits.

The tcpip model uses four layers that logically span the equivalent of the top six layers of the osi reference model. This diagram illustrates the simplified tcp fsm. Here are few drawbacks of using the tcpip model. Linux socket part 14 advanced tcpip the tcpip stack osi layer.

Tcpip architecture and the tcpip model page 2 of 3 tcpip model layers. This article has a good overview of the osi protocol layers and their functions. Each layer usually has more than one protocol options to carry out the. In 1990 it became the most widely used form of networking between computers.

Stack overflow for teams is a private secure spot for you and your coworkers to find and share information. Learn more tcpip and http diagramm deploiment. This model was started in the late 1960s as a government financed research project. Most networks today use tcpip model because it allows computer manufactured from different vendors of all sizes running totally on the different operating system to communicate together.

The most widely used and most widely available protocol suite is tcpip protocol suite. For both establishment and termination there is a regular sequence where the initiating and responding devices go through different states and a. Tcpip is a complicated model to set up and manage. A protocol suit consists of a layered architecture where each layer depicts some functionality which can be carried out by a protocol.

The physical layer is not covered by the tcpip model because the data link layer is considered the point at which the interface occurs between the tcpip stack and the. These are four tcp ip. It can be operated independently. It can be used to establish a connection between two computers.

I have added them to show more clearly the sequences taken by the two devices to open and close a link. This is a continuation from part iii series tcp udp client server program examplesworking program examples if any compiled using gcc tested using the public ips run on linux fedora 3 with several times of update as root or suid 0the fedora machine used for the testing having the no.
